3000m White Laser Lighting Module
3000m white light laser illumination module's spot brightness reaches over 23,000 Lx at 48 meters, with a color temperature of 8000K. It can be applied in fields such as maritime search and rescue, nighttime illumination, large gimbals/pods, fishery and aquaculture, riverway management, and border surveillance.
High brightness, pure light color
Full color surveillance camera at night with supplementary lighting
Disaster prevention, search and rescue, and lighting up
Maritime search and rescue replenishment
Intelligent auto-dimming, Smart Sync Zoom
Obtaining certification: IEC, CE, RoHS, REACH
I. Market Application
This 3000-meter white light laser illumination module uses a high-energy blue laser to excite high-temperature-resistant yellow phosphor to produce white laser. It is a white light laser illuminator featuring automatic dimming and synchronized zoom. Its spot brightness reaches over 23,000 Lx at 48 meters, with a color temperature of 8000K. It can be applied in fields such as maritime search and rescue, nighttime illumination, large gimbals/pods, fishery and aquaculture, riverway management, and border surveillance.

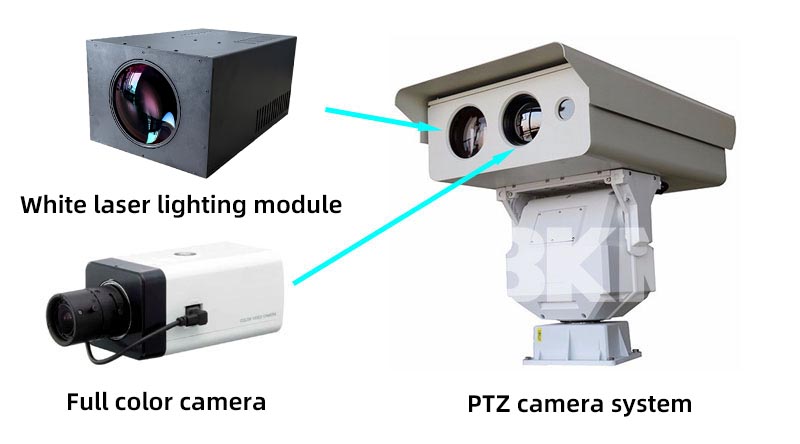

3000m zoom white laser lighting Night vision monitoring system

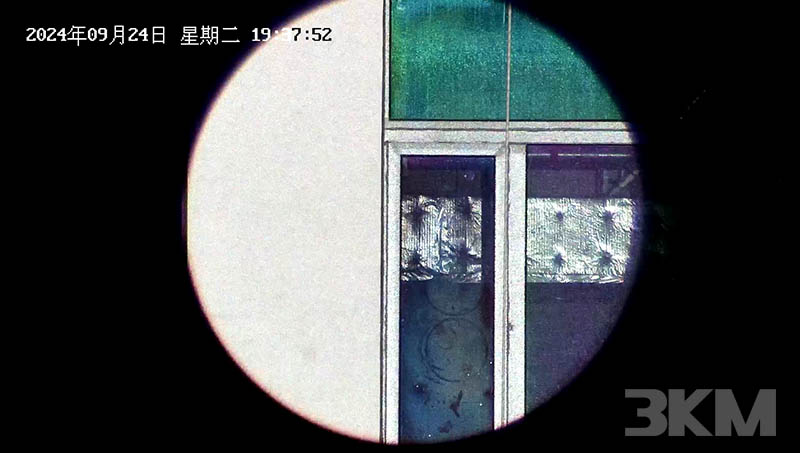

3000m zoom white laser lighting module test results
II. Technical Parameters
Parameters | Values and Description |
Product ID | K10120014 |
Model | VLW-LD-3000-01 |
Effective Distance | ≥3000m |
Glow color | White laser |
| Output color temperature | ≥8000K |
| Brightness | ≥23000Lx（@1°，@48m） |
| Input Voltage | VC 220V |
Consumed Power | ≤300W |
Laser Type | blue laser excites yellow phosphor |
Illumination Angle | 1.0°~5.0°(Continuous zoom) |
Operating Mode | Continuous Working Mode |
Communication Protocol | Pelco_D |
Communication Interface | RS-485/UART portTTL(Default: 9600bps) |
Operating Life | ＞10000h |
Operating Temperature | -35℃～+55℃ |
Storage Temperature | -50℃～+100℃ |
Profile Dimensions | L*W*H=480*289*214mm |
Weight | <20kg |
Note: the white light laser illumination module parameters are subject to the quotation scheme, subject to change without prior notice.

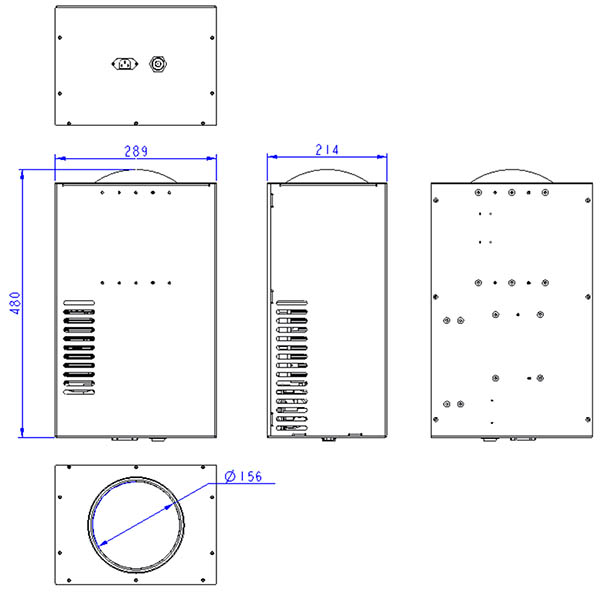

IV. Overall Dimensions

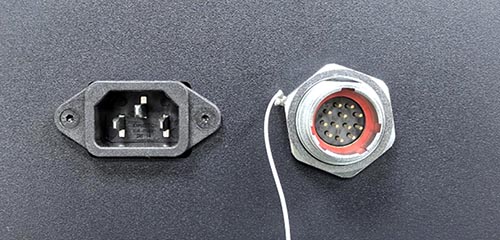

V. Interface Definition
AC220V power outlet
Aircraft plug model: ZMQ-WF20-12 pin
1. DC12V, 2. GND, 3. 485B, 4. 485A, 5. TX, 6. RX, 7~12 empty
VI. Notes
The White Laser Lighting Modules belong to the class 4 non-visible light laser. While the laser light is on, back-light looking at or observing laser light beam with optical instrument is strictly prohibited.
While the White Laser Lighting Module is on, flammable objects are strictly prohibited within 100cm in front of the lens to prevent fires.
The White Laser Lighting Module should be installed where people could not look at it directly or it should be a long enough distance from where people could look directly. Manufactures should choose the Laser radiation power according to its actual application environment, in order to avoid hurting people's eyes.
Manufactures using our White Laser Lighting Modules should put labels warning of laser radiation.
When device fault occurs, please contact with our qualified maintenance personnel for service rather than disassemble it at your own discretion, otherwise warranty will be end of the moment you disassemble it.
